Quantum Detection Systems Products
ID Quantique offers a range of quantum detection systems products and solutions. For single-photon detection, there are single-photon avalanche diodes in the telecom wavelengths (III-V material, 900-1700 nm), as well as the high-efficiency, broadband and picosecond-fast superconducting nanowire devices (780-1625 nm). Furthering the goal for precision timing, IDQ offers the Time Controller Series and ultrafast picosecond lasers.
anchor
anchor
New Products

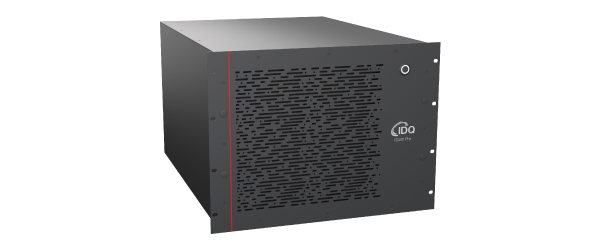

ID281 Pro SNSPD System
- Fully autonomous 24/7 continuous operation
- Rapid and simple installation
- Intuitive Web UI for remote operability
- Compact, 8U high rack mount cryogenic system with up to 16 detectors
- Optional rack-mount vacuum pump and/or compressor
Product Details
anchor
Superconducting Nanowire Single-Photon Detectors
ID281 Pro SNSPD System
- Fully autonomous 24/7 continuous operation
- Rapid and simple installation
- Intuitive Web UI for remote operability
- Compact, 8U high rack mount cryogenic system with up to 16 detectors
- Optional rack-mount vacuum pump and/or compressor
Product Details
ID281 SNSPD System
- Near-ideal detection efficiency: can exceed 95%
- Highly precise timing and low noise, true latch-free operation
- Ultrafast and photon-number resolving detection
- Mix and match up to 16 detectors, with options for rack-mounted systems
Product Details
anchor
InGaAs/InP single-photon avalanche diodes (III-V SPADs)

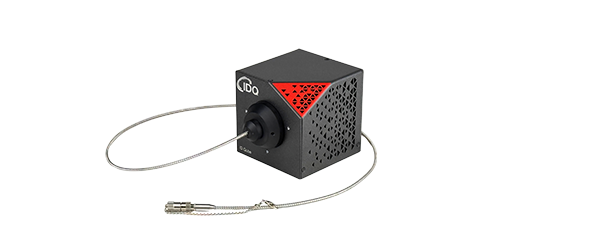

ID Qube NIR Gated
- High-efficiency single-photon detection (up to 35%)
- Fast gating (up to 100 MHz and free-running)
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product Details

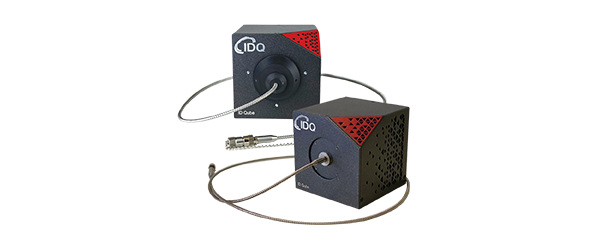

ID Qube NIR Free-Running
- High-efficiency single-photon detection (up to 35%)
- Optimised for free-running operation
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product Details

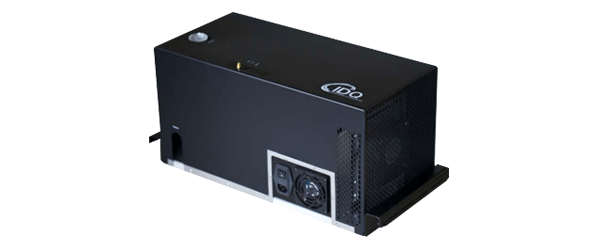

ID230 Infrared Single-Photon Detector
- Free-running
- 25% quantum efficiency
- Low dark count rate: 50 Hz
- 150 ps timing resolution
Product Details
anchor
Timing Devices
ID1000 Time Controller Series
- All-in-one time-tagger & pulse generator
- Multi-device synchronisation for over 64 input channels
- Precise timing: 1 ps resolution
- Real-time four-fold coincidence filtering
Product Details
anchor
Light Sources

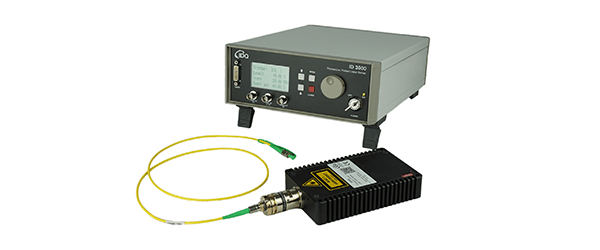

ID 3000 Series – Picosecond Lasers
- On-demand laser pulses, continuously tuneable up to 40 MHz
- Ultrafast laser pulses (typically below 30 ps, at least < 50 ps)
- Ultra-low timing jitter < 4 ps rms
- Operating in a range of wavelengths, from UV to the telecom C-band
Product Details
anchor
QKD in the Lab
Clavis XGR QKD System
- User-friendly interface for education, technology evaluation and testing
- Access to internal data and modifiable parameters
- Option to use external detectors for evaluation or long distance links
- Interoperability through standardized interfaces for experimental networks
Product Details
Cerberis XGR QKD System
- User-friendly interface for education, technology evaluation and testing
- Access to internal data and modifiable parameters
- Interface to external encryptors
- Interoperability through standardized interfaces for experimental networks
Product Details
